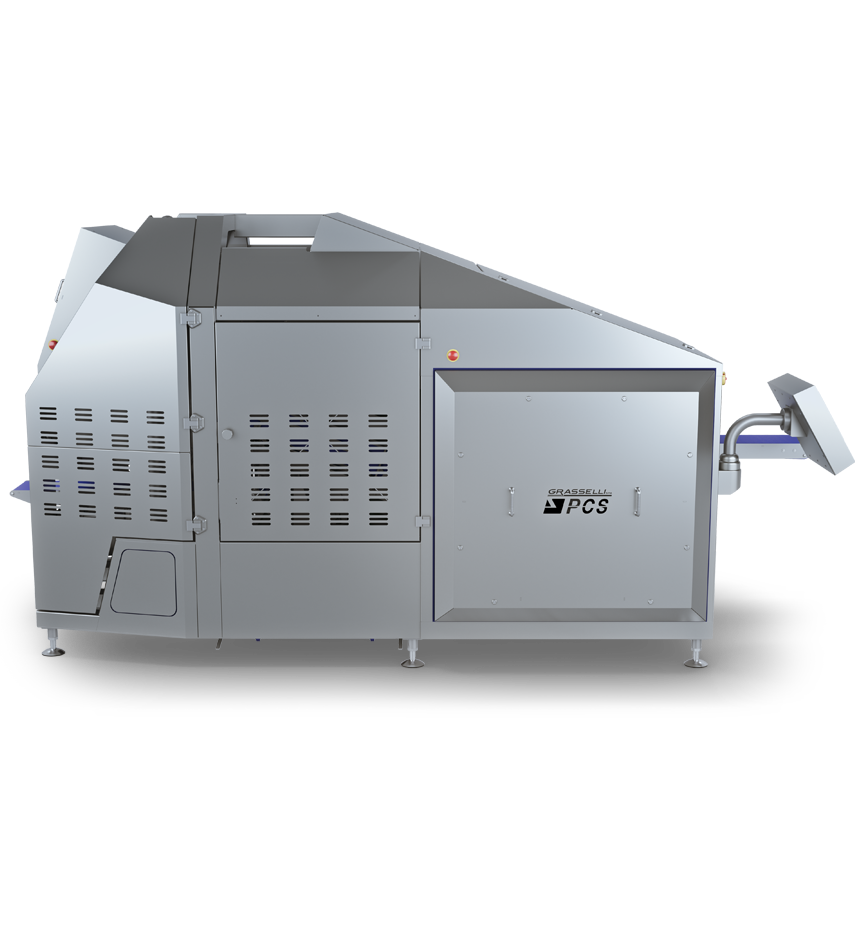

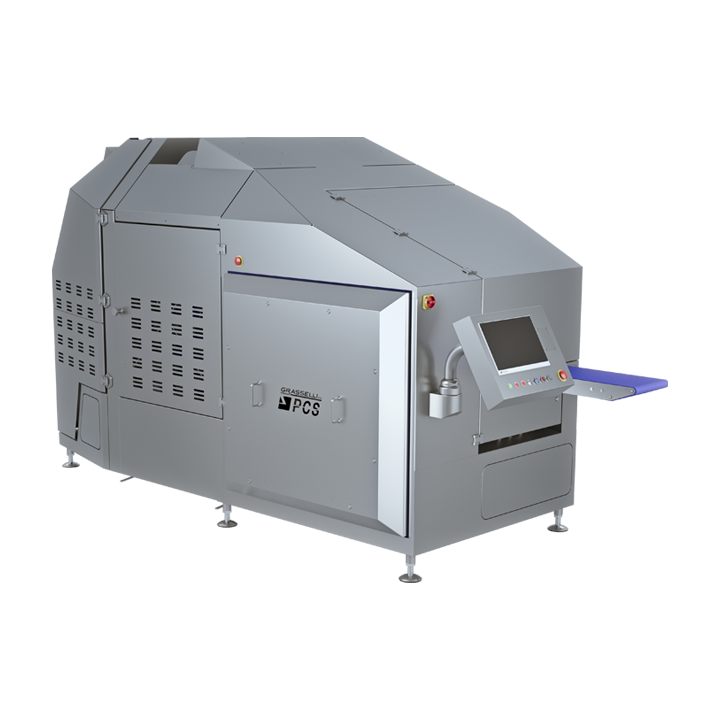

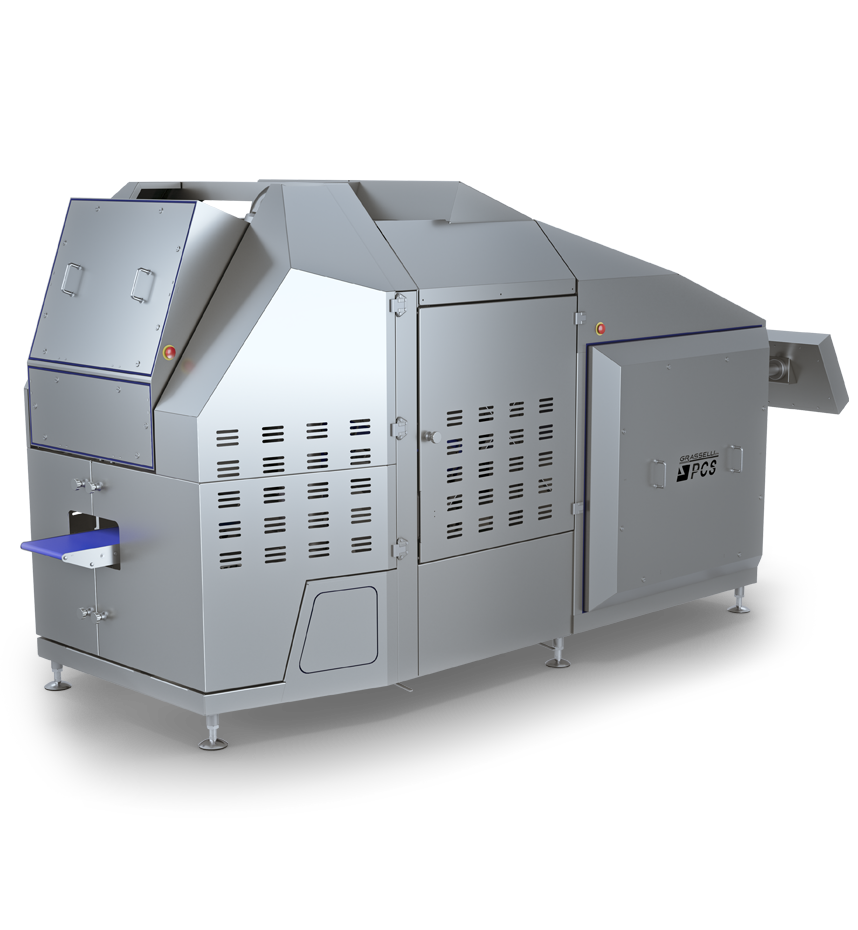

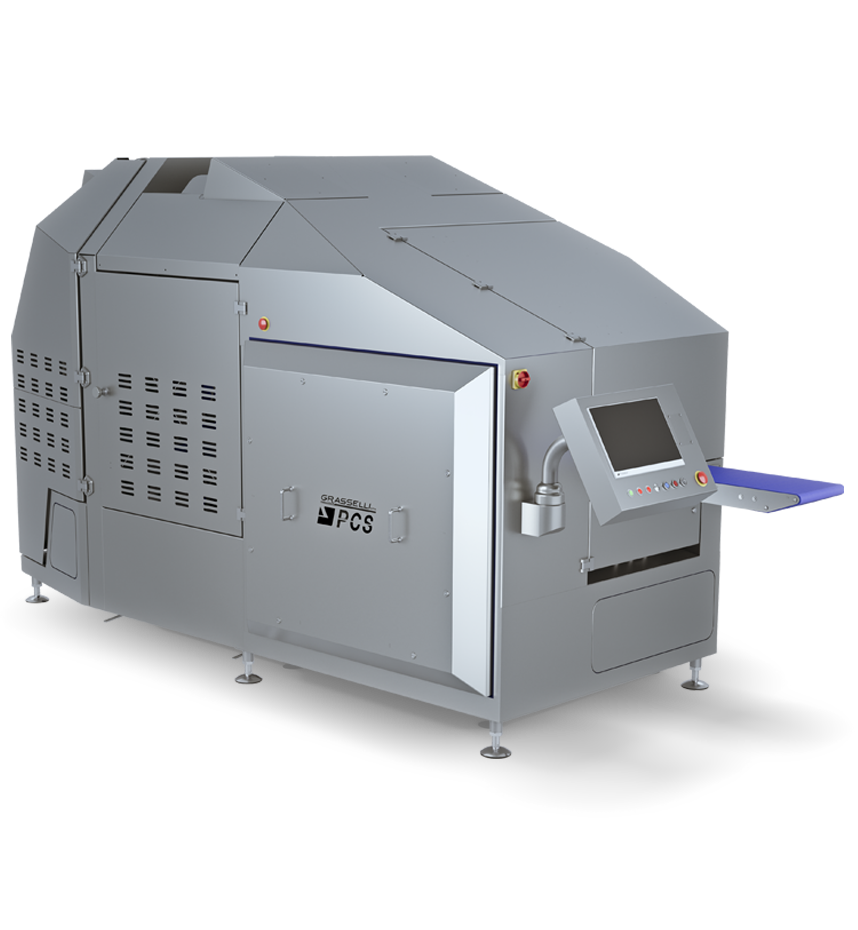

PCS

►

Video

Technical specification sheet

No compressed air required
No compressed air required for the machine functioning, enabling substantial savings in terms of energy consumption and maintenance.

Smart software for smart functionalities
PCS allows to compensate size variation inside the same mould set in a range of ± 15% of the volume without affecting the quality level of the sliced product. Size variations can be managed by a smart functionality,
automatically changing the pressure parameters according to the size of the incoming product.

The first step to a Fully Automatic Slicing Line for Trays on weight and/or thickness
In Line with our ATF – Automatic Tray Filling machine – PCS allows for high yield slicing of weight/thickness-controlled portions ready to be automatically positioned into trays.

Technical data

Height :	2200 mm / 86.61"
Width :	1650 mm / 64.96"
Depth :	3385 mm / 133,27"
Weight :	2822 Kg / 6222 lbs
Motor power:	4 Kw
Noise level:	71 dB
Maximum working width:	200 mm x 150 mm x 70 mm - 7.87" x 5.90" x 2.75"
Water consumption :	Water Connection required only for some types of products
Air consumption :	< 1
